Installation
blendate » Devlog
Requirements
- Blender: Version 4.0 or newer
- Playdate SDK: Version 2.6 or newer (may work on previous versions but untested)
Step 1: Download Blendate
-
Download the latest Blendate release. It contains:
blendate_addon_vX.X.X.zip
(The Blender add-on itself)blendate.lua
(The companion script for your Playdate project)
Step 2: Install the Blender add-on
- Go to the main menu and select
Edit
>Preferences
. - In the Preferences window, click on the
Add-ons
tab on the left. - Click the

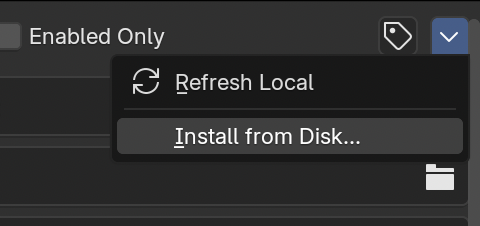

Install from Disk
button located in the drop-down menu at the top-right of the Add-ons panel. - Navigate to where you downloaded the Blendate package and select the
blendate_addon_vX.X.X.zip
file. Do not unzip it first. - Click the
Install Add-on
button. - Blender will install the add-on. Search for "Blendate" in the search bar within the Add-ons panel.
- If it is not already enabled, click the checkbox next to its name to enable it. Done!
Verification: To check if the add-on is installed correctly, select a Mesh or Armature object in the 3D Viewport. Press N
to open the Sidebar (if it's not already open). You should see a new tab labeled "Blendate".
Step 3: Integrate the Lua Script (optional)
The blendate.lua
script is an lua library which can load the spritesheets and metadata generated by the Blender add-on. If you prefer, you can ignore this and write your own integration code.
- Copy the Lua File: Copy the
blendate.lua
file from the downloaded package into your Playdate game's source code directory. A common practice is to place utility scripts in a dedicated folder, for example:[Your Playdate Project]/ ├── source/ │ ├── main.lua │ ├── blendate.lua <-- Place it here │ ├── images/ │ ├── metadata.json │ └── ... (other game files) └── pdxinfo
- Import the Script: In your game's Lua code (e.g.,
main.lua
or wherever you handle asset loading), import the Blendate script using theimport
function. The path should be relative to yoursource
directory:import("Blendate")
- Load Metadata: When initializing your game or loading a level, create an instance of the Blendate loader by providing the path within your game's bundle to the
metadata.json
file generated by the Blender add-on.local bd = Blendate("metadata.json")
- Load Sprites/Animations: Use the methods provided by the
Blendate
object to load your assets. You'll need the base path/name of the spritesheets as generated by the add-on.- Loading Rotations:
-- Load a rotation sequence (turntable) local anim = bd:loadRotation("images/Suzanne")
- Loading Animations:
- Without rotations:
-- Load a specific animation named "idle" local idleAnim = bd:loadAnimation("images/Bob", "idle")
- With rotations:
-- Load an animation that also includes rotation data local rotatingRunAnim = bd:loadAnimation("images/Bob", "run") -- To get the correct animation loop for a specific angle: local currentAngle = 90 -- Example angle local runAnimForAngle = rotatingRunAnim:get(currentAngle) -- 'runAnimForAngle' is the animation.loop for the closest rendered angle
- Without rotations:
- Loading Rotations:
